1080p 4x12 HDMI Over LAN Matrix Switcher w/Real Time iPad Video Preview

WolfPack

1080p 4x12 HDMI Over LAN Matrix Switcher w/Real Time iPad Video Preview
$3,375.00
SKU:
4x12-1080p-LAN-900
UPC:
603134699791
Availability:
In stock
1:
4x12 HDMI Over LAN POE Matrix Switcher
2:
4-TXs, 12-RXs & Ethernet Switch (All POE)
3:
VLAN Support & Field Upgradeable
4:
iPad Real Time Video Preview of Sources
5:
Android Real Time Video Preview of Sources
6:
Built-in Video Wall Processor
7:
Sends & Receives 1080p to 450' w/CAT6
8:
Separate Audio Ins & Outs
9:
No (80ms) Latency
10:
Seamless 4-frame (60ms) switching
11:
Includes WIFI Adapter & 19" Rack Mount Kit
Adding to cart… The item has been added
Make a Fair Offer
Ask an Expert
GET A QUOTE

This WolfPack 1080p 4x12 HDMI Over LAN Matrix POE Switcher sends 4-1080p HDMI video & audio signals to 12-TVs up to 450-feet away using a single CAT6/7 cable. This LAN based HDMI Matrix Switch sends any input, to any output, in any combination, or all outputs, all controlled with tablet, and a PC. The Ethernet switch supports both copper (CAT6/7) and fiber network interfaces.

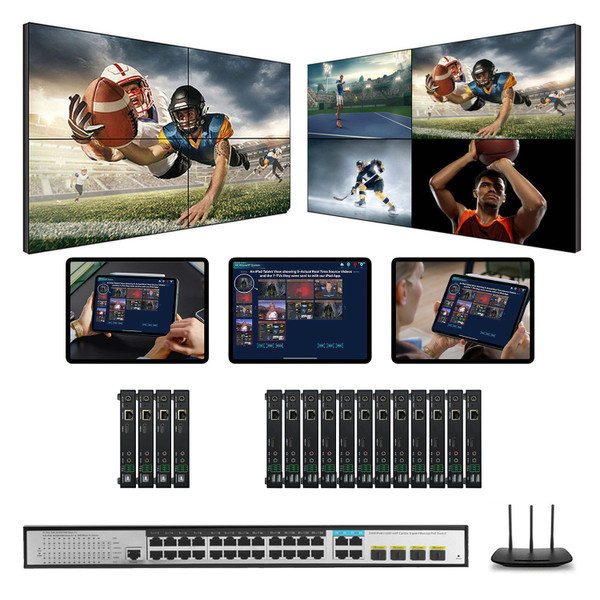

4x12 HDMI Over LAN Matrix Switcher Configuration:

  • 4 - 1080p HDMI to LAN Transmitters to 450'
  • 12 - 1080p HDMI to LAN Receivers to 450'
  • 1 - 24-Port Rack mount 1G IGMP POE Managed Ethernet switch
  • 1 - Wireless iPad Controller & its Ethernet switch
  • 1 - 19" Rack Mount Kit for up to 14-Transmitters

4x12 HDMI Over LAN Matrix Switcher Features:

  • Wireless Real Time Video iPad Preview: Preview the source video on an iPad before sent it to the TVs. That means your iPad will show, in real time, the videos that are on, say, all your DirecTV receivers. If you have 6-DirecTV receivers all set to different channels you'll see 6-different real-time videos, not pictures, but real time video on the iPad. You then can send them, if You choose.
  • Apps & Windows Control: This LAN based 4x12 HDMI Matrix Switcher allows any input to be routed to any output; or the same input to be routed to all outputs, or any combination all controlled with an iPad and Android App, optional wall mounted touchscreens, and a Windows PC. You can even turn all the TVs OFF & ON with one iPad button.
  • Video Wall Support: You can create a system with Video Walls of any size, and quantity based upon the number of outputs you have with input & output HDMI resolutions supporting up to 1920x1080@60Hz. The 4x12 HDMI LAN Matrix is shown in the picture.
  • Cascadeable Ethernet Switches: Optionally, ethernet switches be cascaded and still act as a one large matrix. This is great for multiple floors, multiple rooms, and even multiple buildings by using fiber between them. All the many TVs will be in perfect synch with each other. The Ethernet switch supports both copper (CAT6/7) and fiber network interfaces.
  • VLAN Support: This 4x12 LAN based HDMI Matrix Switcher can be installed on your existing LAN as it have VLAN capability. Our VLAN HDMI Matrix System uses VLAN technology to isolate and protect the HDMI signals from other traffic on your network. Devices on the same VLAN can communicate with each other as if they were on the same physical network, even if they are connected to different switches or routers.
  • Build Your Own (BYO) or Buy Pre-configured Systems: We offer two ways to purchase our systems, one is to BYO and the the other is buying this preconfigured 4x12 POE HDMI Over LAN Matrix Switcher.

Compare this 1080p 4x12 POE HDMI Over LAN Matrix Switcher with Others:

  • Wireless Real Time Video Preview
  • iPad shows live source video
  • Supports a VLAN
  • AV Over IP w/POE Technology
  • Rename Sources & Displays on tablet
  • WIFI iPad & Android Apps
  • 1080p video via 1G Network Switch
  • Bandwidth is only 7-Mbps
  • Latency is only 80ms
  • Seamless 4-frame (60ms) Switching
  • Video walls up to a 7x7 (49-TVs):
    • Any Size Video Walls
    • Any Qty Video Walls
  • iPad button turns TVs OFF & ON w/CEC
  • Windows software control
  • Unlimited Save & Recall presets
  • Plug & Play (DHCP IP address)
  • Supports UI custom control
  • IP controller for 3rd party control
  • Auto-scaling from 480p@60Hz to 1080p@60Hz
  • Push one key for the IP address
  • 3rd party Open UDP commands
  • 19" Rack Mount cage up to 14-TXs
  • Extends HDMI to 450' with CAT6/7
  • Supports the H.264 Protocol
  • SEC Security Compliance
  • HDCP 1.4 compliant
  • Separate audio outs
  • Scalable Ins & Outs
  • Field Upgradeable to 50-ports

Why not buy this 1080p 4x12 HDMI Over LAN Matrix Switcher today?

4x12 HDMI Over LAN Matrix 1080p Switcher w/Real Time iPad Video Preview Specs:

  • Any in, to any out, in any combination
  • Distances are up to 450' with CAT6/7
  • iPad Control
  • 1080p video over an 1G Switch
  • Resolutions up to 1920x1080p 4:4:4
  • Scalable input and output configurations
  • Field Upgradeable
  • Many used in Sports Bars & Clubs

HDMI Transmitter & Receiver Over LAN Specs:

  • Resolutions Supported:
    • 640 x 480@60Hz
    • 480p@60Hz
    • 576p@50Hz
    • 800 x 600@60Hz
    • 1024 x 768@60Hz
    • 720p@50Hz
    • 720p@60Hz
    • 1280 x 800@60Hz
    • 1280 x 1024@60Hz
    • 1366 x 768@60Hz
    • 1400 x 1050@60Hz
    • 1440 x 900@60Hz
    • 1680 x 1050@60Hz
    • 1920 x 540@60Hz
    • 1080p@24Hz
    • 1080p@25Hz
    • 1080p@30Hz
    • 1080p@50Hz
    • 1080p@60Hz
  • HDMI 1.3 & HDCP 1.4 compliant
  • POE or can be powered w/optional power supply
  • No need to set IP settings as it's plug & play
  • WEB GUI control for IP address, video wall, EDID, etc
  • Supports renaming the sources and displays
  • 3-pin audio on TX and RX
  • EDID preset & learning
  • ~50ms Low latency with Low latency mode
  • ~250 ms latency in High quality mode
  • Both Video Wall mode & matrix switch modes
  • Supports iPad APP control with preview function
  • iPad & Android tablets are not supplied

The HDMI Transmitter and Receiver Over LAN Set allows you to simultaneously support an HDMI 1.4 Signal (including 1080p video with 5.1 audio) to one or more HDMI video projectors or LCD Panels using one CAT6/7 cable over a standard Ethernet infrastructure.

Why not buy this 1080p 4x12 HDMI Over LAN Matrix Switcher today?

WolfPack POE LAN Software and Apps

XView Software

Why not buy this 1080p 4x12 HDMI Over LAN Matrix Switcher today?

Q: How do you test before you ship my system?
A: We put the products in the heating room for 12-hours for aging and have all the products turned On and the temperature of the heating Room set to 140 degrees. If anything fails we replace the failed unit and start the test over again.

Q: What is the switching time on the HDMI over the IP network?
A: The switching time is about 80 to 100ms.

Q: What is the latency on the HDMI over the IP network?
A: The latency is about 80ms.

Can the Ethernet switches be cascaded and still act as a matrix?
A: Yes. The network switches can be cascaded and still act as a large matrix.

Q: Is it a WEB GUI control or PC software
A: It is a PC control software-based system for the setting up the configurations

Q: How do you change the IP and MAC address of the transmitters and receivers?
A: You can set up the IP and MAC on the iPad app or PC control software,but we recommend using the automatic IP and MAC address, so it can support plug and play.

Q: The Transmitters and Receivers both have Audio out on the receiver can the audio be matrixed such as Receiver A sends audio out to Receiver B, if using the audio out?
A: The audio out on both the RX and TX are the corresponding audio with the video so its audio function is only an extract function from the video and is not able to do as an audio matrix.

Q: On the IP control box there are (2) LAN ports, would that be for 2 separate LANs?
A: We will only need to use the LAN 1 for the controlling & settings and for the broadcast version:

  • LAN1 (AV/POE): To connect with the network switch use the PC control software to control this system
  • LAN2 (C): To connect with the network switch this is used for a 3rd party to use the IP control this system

Q: What is it a distance with POE in and out?
A: With the POE, the input can up to 450 ft at 1080p@60Hz and the output also is up to 450 ft at 1080p@60Hz.

Q: What type of UTP cable do you recommend?
A: As it's using for the video signal transmission we recommend using the CAT6a STP 868B cable

Q: Can you use CAT6 - 5E - 6 and 7 and is there a difference in length of cables?
A: We did the tests here with the CAT6/CAT6/Cat6/Cat7 cable and the CAT6 and CAT7 are the best and can reach a distance of 150m with POE

Q: Please give us an explanation of when the large and small streaming resolutions would be used?
A: The highest resolution can up to 1080P@60Hz, the lowest resolution is 680x480@60Hz but that resolution can't support the IP camera decoding

Q: When do you use the control box?
A: There are 2 situations will need to use the control box:

  1. When using the broadcast version (unlimited TX and RX)
  2. When needing to use a 3rd party to control this system (IP/ RS232)

Q: Does the iPad control require a wireless router?
A: Yes, it will need a WIFI router connected in the same system

Q: In the diagram in the manual it shows the IP control box with only an Internet connection, does a PC plug into it?
A: Yes, the control PC uses a LAN cable connected to the same network switch

Q: You also recommend Managed POE switches, correct?
A: Yes, the managed network switch is more stable and it's fanless which is quieter.
