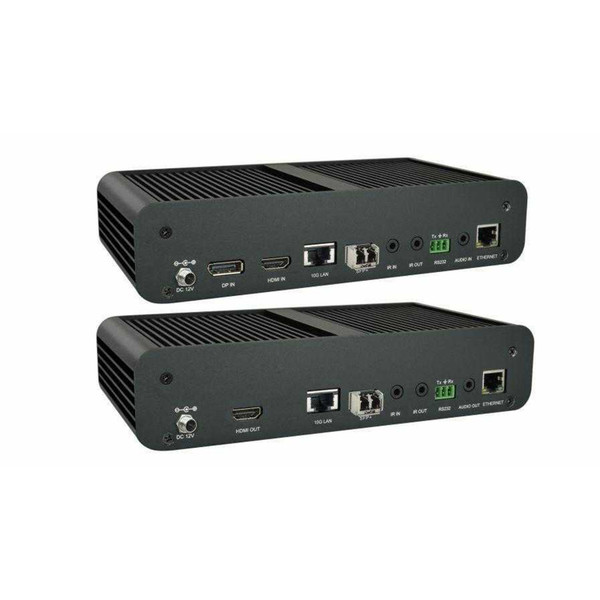

Build Your Own 4K 60 4:4:4 HDR SDVoE HDMI Over IP System

WolfPack

Build Your Own 4K 60 4:4:4 HDR SDVoE HDMI Over IP System
$650.00
SKU:
HDTVIPA1200
Availability:
In Stock
1:
Create a 4K 60 SDVoE HDMI Matrix Switch via LAN
2:
4:4:4 at 18GBPS & 100ms Switching
3:
HDR10, Dolby Vision, HDMI 2.0 & HDCP 2.2
4:
Zero Frame Latency & Zero Compression
5:
Optional WEB GUI Control Box
6:
Video Wall Processing w/Bezel Correction
7:
Supports CAT6 cables to 330 feet
8:
Also, supports OM3 fiber cables to 1,000 feet
Adding to cart… The item has been added
Make a Fair Offer
Ask an Expert
GET A QUOTE
WolfPack HDMI ExtendersHDTV Supply's WolfPack™ 4K 60 HDR SDVoE HDMI Over IP is a SDVoE network AV encoder/decoder system with both HDMI & DisplayPort female connector inputs that support up to 4K 60Hz 4:4:4, 18 GBPS & HDR. It is designed for SDVoE HDMI/DP transmissions over an IP SDVoE network with external audio & control signals at distances up to 330 feet over CAT6/7 copper cables from the Ethernet switch. It works with one control PC (Wake on LAN) & 10GbE Switchers to control its variety of its built-in functions. Use with a 10 GBPS SDVoE Ethernet Switch (Not Supplied). The system also supports both CAT6 and multi-mode OM3 fiber cables supporting 10 Gigabit Ethernet lengths up to 300 meters or 1,000 feet.

The WolfPack™ 4K/60 SDVoE HDR HDMI Over IP series features uncompressed video with zero-latency from encoder to decoder, seamless switching, Video wall functions, 1G Ethernet, IR, RS232, audio embedding/de-embedding, audio down-mixing, and more. The control PC merges all the functions into a Web-GUI meaning that the user control system functions over multiple OS which then can support any browser anywhere on the same local area network. Compared with traditional HDBaseT matrix AV Switching, the WolfPack™ SDVoE 4K/60 HDR HDMI Over IP features easy installation, more interoperability and increased flexibility. It is ideal for distributing AV over a 10 Gigabit Ethernet SDVoE switch in enterprises and other large-scale installations.

The WolfPack™ SDVoE 4K/60 HDR HDMI Over IP series provides one of the most advanced IP Streaming solutions on the market utilizing AptoVision BlueRiver™ NT+ technology, which synergizes various IP/AV standards to work together as one. It combines a variety of 4K IP technologies and features under one unified protocol controlled by a optional simplified single WEB GUI.

EXAMPLE: 4K/60 SDVoE 8x16 Network HDMI Matrix Switch: Let us say you have an application where you need to send 8-4K 60 sources sent to 16-4K @ 60 Hz TVs in any combination. The sources are 6 feet away from the Ethernet switch and the TVs are 200 feet away from the Ethernet switch. This is a 4K/60 8x16 Network HDMI switch and here is what you need to buy from above:

  • 8 - 4K/60 SDVoE HDMI Transmitters (TX) + their AC Adapters
  • 16 - 4K/60 SDVoE HDMI Receivers (RX) + their AC Adapters
  • 1 - SDVoE SDVoE IGMP 10-Gigabit Ethernet Switch (Not Supplied)
  • Field expandable by simply buying more TVs, sources and SDVoE RXs and SDVoE TXs

WolfPack™ 4K/60 HDR SDVoE HDMI Over IP Features:

  • The most advanced SDVoE IP Streaming solutions on the market utilizing AptoVision BlueRiver™ NT+ technology.
  • True 4K/60 4:4:4 and Dolby Vision transmission, HDMI 2.0b and DP 1.2 standard.
  • HDCP 2.2 complaint.
  • 4K with zero compression and zero latency.
  • Uses a SDVoE 10Gbps network switch (not supplied)
  • Seamless switching with selectable output resolutions from 720p~4K scaling ability.
  • Video wall processing with bezel correction.
  • Audio embedding, de-embedding and down-mixing
  • Two-way IR and RS232 control.
  • Integrated Web Server for Device control.
  • Streams uncompressed video with zero-latency, audio and control, with the flexibility of transmitting them together or to separate network destinations.
  • Supports HDMI 2.0 and video resolutions up to 4K@60Hz 4:4:4 8bit and 1080P 3D.
  • 18Gbps high bandwidth and supports HDR 10 and Dolby Vision.
  • Automatically detects and switches HDMI and DP inputs.
  • Transmits and receives RS232 and IR to any units by using an Unicast or Broadcast IPV4 protocol or local control by an API server.
  • Our WolfPack family is HDCP 2.2 compliant from encoder (TX) to the decoder (RX).
  • Allows a video source to be stretched across multiple displays.
  • Seamless switching between different encoder with selectable output resolutions up to 4K 60 & with a scaling ability.
  • Encoder route HDMI audio, external audio as an independent streaming for decoder embedding.
  • BlueRiver NT+ Series is compatible with SDVoE, offering zero-latency AV-over-IP with true 4K/60 and video processing.
  • AptoVision BlueRiverTM NT+ technology. NT1000 chip is implemented in the transmitter and NT2000 chip is implemented in the receiver.
About 10G Networks: Unlike traditional AV extension technology such as HDBaseT where transmitters and receivers are connected point to point or joined together using a custom matrix switch, SDVoE transmitters (TX) and SDVoE receivers (RX) units based on BlueRiver NT and NT+ technology are interconnected using standard of the shelf 10G Layer 2/3 network switches. This flexibility in signal routing enables multiple applications including: matrix switching, scalers and video-walls.

Through this architecture all signals are now packed into data packets that are independently routed. Not only does this allow sending data from one transmitter to one receiver (1 to 1) or one transmitter to many receivers (1 to many). An added benefit of packet data transmission is that each signal type (video, audio, RS232 etc.) is routed independently and not necessary to the same destination. As an example, HDMI video received by particular Transmitter goes to 4 Receivers, while the audio goes to all receivers.

Why not create a WolfPack™ SDVoE 4K/60 HDR HDMI Over IP today?

HDTV Supply's implementation of the SDVoE technology replaces the traditional matrix switch with a more flexible, scalable, reliable and more affordable solution. Ethernet ports are bidirectional so you no longer have to consider inputs vs. outputs...just how many ports you need. Ethernet switches can be stacked and scaled to thousands of ports.

Also, our SDVoE processing engines are capable of powerful video manipulations such as scaling, cropping and stretching. These basic processing blocks can be used to create video walls of arbitrary size and shape. Software tells each receiver its position in an array, and the correct image is displayed on the screen. An added benefit is that SDVoE receivers know how to keep all wall outputs perfectly synchronized. The result is easy-to-implement video walls with no extra cost on top of your switching and distribution system.

WolfPack™ 4K/60 HDR HDMI Over IP Specification:

  • WolfPack™ 4K/60 HDR HDMI Over IP Transmitter:
      • Extension, IP switching and processing
      • All HDMI 2.0 formats including
        • 4K/60 8-bit 4:4:4
        • 4K/60 10-bit 4:2:2
        • High dynamic range content (HDR10)
      • Multichannel digital audio embed, de-embed and transport
      • 10/100/1G Ethernet (internal GbE switch)
      • Bidirectional RS-232, IR and USB 2.0
    • Independent, breakaway routing of each signal type (audio, video, data, control) through standard Ethernet switches
    • Zero-latency operating mode (0.1 milliseconds)
    • Extension to 100 meters on category cable (via 10GBaseT PHY) or 30 kilometers on fiber (via SFP+ module)
    • System level HDCP 2.2 / HDCP 1.2 digital content protection support (via external transceiver)
    • All 3D video modes including frame packing, top-bottom, field/line alternative, side-by-side and 2D + Depth
    • Video Input: (1) HDMI, (1) DP
    • Video Input Connector: (1) Type-A female HDMI, (1) DisplayPort
    • HDMI Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
    • DP Input Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
    • Audio Input: (1) AUDIO
    • Audio Input Connector: (1) 3.5mm jack
    • Control: (1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232, (1) ETHERNET
    • Control Connector: (2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
  • WolfPack™ 4K/60 HDR HDMI Over IP Receiver:
    • Video Output: (1) HDMI
    • Video Output Connector: (1) Type-A female HDMI
    • HDMI Output Resolution: Up to 4Kx2K@60Hz 4:4:4 8bit
    • Audio Output: (1) AUDIO
    • Audio Output Connector: (1) 3.5mm jack
    • Control: (1) 10G LAN, (1) IR IN, (1) IR OUT, (1) RS232, (1) ETHERNET
    • Control Connector: (2) RJ45, (2) 3.5mm jack, (1) 3-pin terminal block
  • WolfPack™ 4K/60 HDR HDMI Over IP General Info:
    • External Power Supply: Input: AC 100~240V, 50/60Hz, Output: 12V DC 2A
    • Power Consumption: TX:19W (Max), RX:21W (Max)
    • Operation Temperature: -10˚C ~ +55˚C
    • Storage Temperature: -25˚C ~ +70˚C
    • Relative Humility: 10%-90%
    • Dimension (W*H*D): 224.0mm x 49.2mm x 110.0mm
    • Net Weight: TX:1.15KG; RX:1.18KG

4K/60 HDR HDMI Over IP Contents:

4K/60 HDR HDMI Over IP Transmitter
  • 1 - WolfPack™ 4K/60 HDR HDMI Over IP Transmitter (Encoder)
  • 2 - Mounting Ears with 6 Screws
  • 4 - Plastic Cushion
  • 1 - 3-pin Terminal Block
  • 1 - Power Adapter (12V DC 2A)
  • 1 - User Manual
4K/60 HDR HDMI Over IP Receiver
  • 1 - WolfPack™ 4K/60 HDR HDMI Over IP Receiver (Decoder)
  • 2 - Mounting Ears with 6 Screws
  • 4 - Plastic Cushion
  • 1 - 3-pin Terminal Block
  • 1 - Power Adapter (12V DC 2A)
  • 1 - User Manual

Why not create a WolfPack™ SDVoE 4K/60 HDR HDMI Over IP today?

HDTVIPA100 4K/60 HDR HDMI Over IP User Manual

HDTVIPA1200 4K/60 HDR HDMI Over IP/Fiber User Manual

Why not create a WolfPack™ SDVoE 4K/60 HDR HDMI Over IP today?

NOTE: All of these 4K 60 4:4:4 SDVoE HDMI Matrix Switchers Over LAN systems, unless otherwise noted, require a dedicated HDMI video system with its own SDVoE Ethernet switch (Not Supplied) and not attached to your existing LAN system due to the unknown bandwidth impact on the HDMI video from your network.

The SDVoE design needs to meet these specs:

  1. One Dedicated VLAN for the below devices
  2. No other network appliances in the VLAN
  3. Not the same as an existing "Multicast VLAN"
  4. Unique subnet
  5. No other network appliances in the subnet
Using SDVoE systems in a single dedicated VLAN to keep them from interfering with the rest of your VLAN. With all devices in a single VLAN, switching sources involves modifying the IP of the Receiver rather than actively manipulating the VLAN configuration of the managed switch.
Remember these 4-Hints when designing a system: (1) use 10G switches, (2) enable IGMP 2 snooping, (3) enable IGMP 2 fast leave & (4) disable unregistered multicast flooding. If you have not enabled IGMP snooping, your receivers will not be able to connect to transmitters. You will see no image at all. If you have not enabled fast leave, then switching a receiver from source to source will be slow, and possibly include messy artifacts. If you have not disabled unregistered multicast flooding, your network will be overwhelmed by video data from unused transmitters, and it could stop communicating altogether. This setting is also sometimes called "filter unregistered multicast traffic". SDVoE processing is capable of powerful video manipulations such as scaling, cropping and stretching. These basic processing blocks can be used to create video walls of arbitrary size and shape. Software tells each receiver its position in an array, and the correct image is displayed on the screen.

SDVoE is a game-changer. It turns the potential benefits of 4K/60 AV over IP that have been talked about into tangible, measurable reality, by sweeping away the limitations of previous attempts to deliver pixel-perfect, zero-latency high-quality video: easily, flexibly, getting rid of the complexity of previous AV approaches. Furthermore, it has already got a robust set of supporting manufacturers, adopters and contributors who view it as the platform for the next generation of AVoIP distribution.

Why not create a WolfPack™ SDVoE 4K/60 HDR HDMI Over IP today?

Q: What is SDVoE?
A: SDVoE = Software Defined Video Over Ethernet. It is universally acknowledged that the transition of the AV industry to IP-based solutions is inevitable. Moving AV distribution to IP offers the possibility to create dramatically new architectures and entirely new user experiences. However, too many different approaches exist and are confusing the market and customers. Furthermore, many technologies simply fail to meet the performance needs of pro AV. For these reasons, adoption of AV over IP has been slow.

Q: What network switches do we recommend?
A: This is a list of 10GBe Ethernet switchers that have been tested with the Wolfpack SDVoE over IP extenders.

  • Blackbox: LGB5028A
  • Netgear: ProSAFE PLUS XS708E
  • Netgear: ProSAFE Smart XS708T/712T/716T/728T/748T
  • Netgear: M7300-24XF XSM7224S
  • Netgear: M4300 Series (recommended)
  • Speed-NT: UK-6000 Series
  • Extreme Network: Summit X670 Series
  • Arista Networks: 7050X Series

The SDVoE Alliance is bringing leading companies in the space together around a standardized hardware and software platform. The SDVoE platform will disrupt the pro AV industry by enabling applications that were previously unrealizable. All AV distribution applications that demand zero-latency, uncompromised video can benefit from SDVoE technology. SDVoE network architectures are based on off-the-shelf Ethernet switches thus offering substantial cost savings and greater system flexibility and scalability over traditional approaches. Markets that benefit from SDVoE technology include education, healthcare, enterprise, entertainment, hospitality, retail, houses of worship, government, military, industrial and security.

We recommend that SDVoE Ethernet switchers only be used with these 4K/60 HDR HDMI Over IP Transmitters and Receivers.
